Connect a client with OAuth

No shared key. The client sends you to the console, you sign in the way you always do, you approve the client once for a group and a zone, and every call runs under your name. The console is the OAuth 2.1 authorization server: PKCE, pre-registered public clients, no client secret, no dynamic registration.

What an admin does once

  1. Config → OAuth clients → Register client: a name and the redirect URI. Any loopback name and port is accepted, so http://localhost/callback covers Claude Code and the bridge (which is how Claude Desktop, Cursor and VS Code sign a person in). The client id appears in the table.
  2. Give the person a role in the group on the Users page. MCP User is enough.

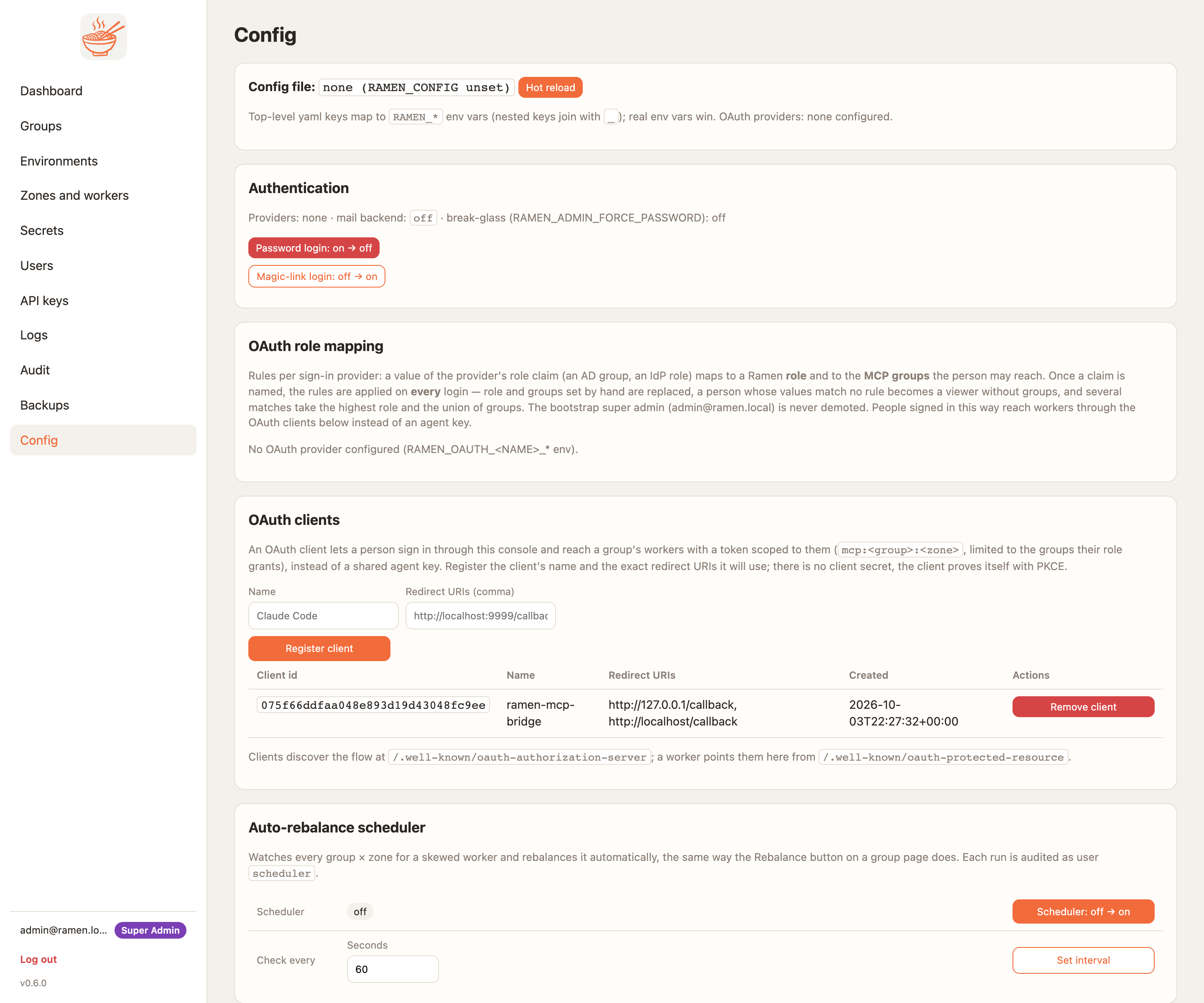

OAuth clients on the config page

The Config page, where OAuth clients are registered.

What the person does

The sign-in step is the same whatever the account: a Ramen password (connect with a password), Microsoft Entra ID or Google (Entra ID and Workspace). The console's login page shows a button per provider, and a role marked OAuth-only sends the person to the provider. Clients differ only in how they reach Ramen:

  • Streamable HTTP: the client talks to https://<edge>/mcp itself. Claude Code can, because it takes a pre-registered client id in its config.
  • The bridge (ramen-mcp-bridge): a small stdio program the client starts; it does the browser sign-in, keeps the token and forwards each message over gRPC. Cursor, VS Code / GitHub Copilot and Claude Desktop find the OAuth flow on their own but expect dynamic client registration, which the console does not offer, so for a person's sign-in they go through the bridge. uvx ramen-mcp-bridge@latest runs the newest release without an install (needs uv); @latest stops a cached uvx from running an old bridge.

Admins need not type these: the group page's How MCP users sign in card generates every command below for the install's edge host, the group's zones and a registered client id, one section per identity provider.

How MCP users sign in, generated on the group page

The generated card for a one-zone group: group key, Ramen accounts, and a section per identity provider.

claude mcp add-json ramen-demo-a '{"type":"http","url":"https://<edge>/mcp",
  "headers":{"ramen-group":"demo","ramen-zone":"a"},
  "oauth":{"clientId":"<client id>","scopes":"mcp:demo:a"}}'
Then /mcp in Claude Code, pick ramen-demo-a, sign in. The browser opens the console's login page (or the provider's), then the consent page.

claude mcp add ramen-demo-a -- uvx ramen-mcp-bridge@latest --target <edge>:443 --tls \
  --oauth https://<edge> --client-id <client id> --group demo --zone a

~/.cursor/mcp.json, or claude_desktop_config.json:

{"mcpServers": {"ramen-demo-a": {"command": "uvx",
  "args": ["ramen-mcp-bridge@latest", "--target", "<edge>:443", "--tls", "--oauth", "https://<edge>",
           "--client-id", "<client id>", "--group", "demo", "--zone", "a"]}}}

.vscode/mcp.json:

{"servers": {"ramen-demo-a": {"type": "stdio", "command": "uvx",
  "args": ["ramen-mcp-bridge@latest", "--target", "<edge>:443", "--tls", "--oauth", "https://<edge>",
           "--client-id", "<client id>", "--group", "demo", "--zone", "a"]}}}

uvx ramen-mcp-bridge@latest --target <edge>:443 --tls --oauth https://<edge> \
  --client-id <client id> --group demo --zone a
Run by hand it signs in, then waits silently for MCP messages on stdin; that is normal.

Where the bridge keeps the token (bridge 0.3.0 and later).

  • In memory by default: nothing is written to disk, and the person signs in again when the client restarts.
  • --keychain keeps it in the operating system's secret store (macOS Keychain, or a Secret Service such as GNOME Keyring through secret-tool); --token-file <path> keeps it in a 0600 file, for automation only.
  • Tokens are forgotten 30 minutes after the last call (--idle-timeout, seconds, 0 disables).
  • A sign-in needed while the client runs does not block: the MCP call answers error -32001 with the link in data.sign_in_url, so the AI client can show it; the person opens it, approves, and the next call works. --no-browser prints the link instead of opening a browser.
  • Behind a self-signed certificate add --ca <pem>; it verifies the console during sign-in as well as the worker.
  • TLS is the default of bridge 1.0.0, the bridge for Ramen 1.0.0 (D86); the commands above keep --tls so a 0.3.x bridge uses TLS too. --insecure (plaintext h2c, RAMEN_BRIDGE_INSECURE=1) is for a bare local worker only and is an error next to --tls or --ca.

Bridge 0.2.x kept the refresh token in ~/.config/ramen-mcp-bridge/; 0.3.0 does so only when asked.

What the bridge writes at sign-in (bridge 1.0.0, the bridge for Ramen 1.0.0). The token answer's telemetry and evals objects become the policy bundle at ~/.ramen/policy/<host>/<group>-<zone>.json (0600; telemetry header values stay in memory) and the group's evals config lands at ~/.ramen/evals/<host>/<group>/promptfooconfig.yaml. Unless started with --no-client-config, the bridge also merges a marked ramen entry into the editor's own files: Claude Code's ~/.claude/settings.json (a SessionStart hook running ramen-mcp-bridge policy check), Cursor's ~/.cursor/rules/ramen-<group>-<zone>.mdc (the policy in words) and VS Code's user settings.json (mcp.servers.ramen-<group>-<zone>); ~/.ramen/clients.json lists every write and ramen-mcp-bridge policy remove reverts them. policy show and policy check print the bundle and compare it with the console's public /.well-known/ramen-policy. Without a bundle and unable to sign in, the bridge exits with Ramen policy missing: reconnect (sign in). Details and the limit of what this can enforce: Evals. Bridge 1.0.0 also keeps the skillspector policy in the bundle: when the group requires it, policy check also scans the skills on your machine with a local SkillSpector and exits 3 on a DO_NOT_INSTALL (SkillSpector scans). When the repo carries mcp/guardrails.yaml (1.0.0c Phase 2.5), the bundle also holds guardrails {version, required, config, client_llm}: the bridge runs the same rails on your machine with the credential the console hands it for that purpose, and a group that requires them refuses a call without the current version (-32029) — see Guardrails.

Accepting the group's LLM configs (1.0.0c Phase 3). When the group repo carries mcp/llm-config/, the consent page also shows that directory — the manifest and every file verbatim — with an Accept control; the token is not issued until it is ticked, once per version of the files. Through the bridge the same page opens in the browser (/groups/<g>/configs) before the first sign-in, and the bridge then writes each file where the manifest says and sets the telemetry environment the group asks for. A changed directory asks again at the next sign-in, and a worker refuses calls without the accepted version (-32028). LLM configs has the files, the merges and what policy check / policy remove do with them.

With a group key instead (agents, CI): no sign-in, the key in Authorization: Bearer. Over HTTP in every client (claude mcp add --transport http … --header "Authorization: Bearer <rmk_ key>", or a url + headers entry for Cursor and VS Code), or through the bridge with --key. Transport has each form.

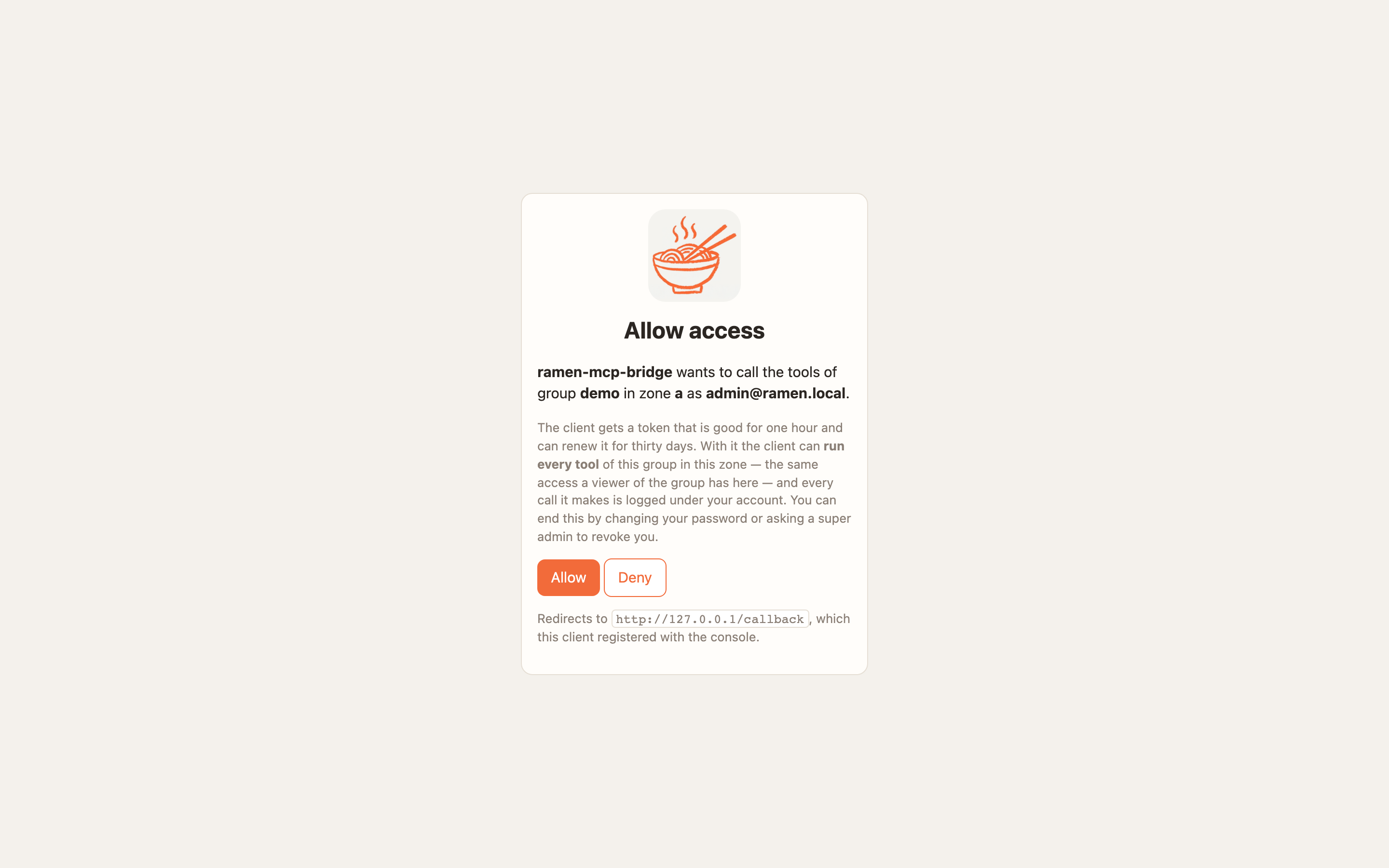

The consent page

What a person sees once: the client, the group and the zone it asks for.

What the token is

An access token lives one hour and names the person, the group and the zone (mcp:demo:a). The worker verifies it on its own, without calling the console. The refresh token lives thirty days, rotates on every use and dies when the person's role, password or account changes. The token runs every tool of the group in that zone, the same reach as a group key, with the person's name on every log line.

Since 0.7.2 the token also names the person's role in the group, which the worker uses for per-tool access (Groups, zones and regions); since 0.7.5 that may be a custom role. The worker's access log shows user:<id> instead of a key id. The Audit page has the client registration and every consent decision, and since 0.7.0 every token mint (oauth.token), refresh (oauth.refresh), a rotated-out refresh token presented again (oauth.refresh_reuse, which revokes the family) and every refusal (oauth.denied with its reason). The lifetimes are the console's RAMEN_OAUTH_ACCESS_TTL (seconds, default 3600) and RAMEN_OAUTH_REFRESH_TTL (default 30 days), shown on the Config page.

When the token expires mid-task

The worker refuses an expired token before the call reaches any tool code, with the same 401 and WWW-Authenticate: Bearer resource_metadata=... challenge a request with no token gets, so an OAuth client (Claude Code) refreshes and retries on its own, and the bridge does the same once for that one call. No browser appears unless the refresh token itself is gone. The MCP session survives: session ids are bound to the person (user:<sub>), not to one token, so the same Mcp-Session-Id keeps working with the refreshed token. A call that started before expiry finishes (auth is checked on entry), and nothing runs twice: the only retry happens when the 401 came back before dispatch. Refresh tokens are stored hashed and belong to one person and one group. Verified with a 3-second token in tests/conformance for 0.7.0 (see the changelog).

What can go wrong

Symptom Cause
The client never opens a browser The worker's metadata URL is relative because neither the Config page's base URI nor RAMEN_PUBLIC_URL was set when it was deployed. The deploy log says "OAuth tokens are off for this worker". Set one and redeploy.
Tokens refused after the base URI changed Workers take the new issuer on their next deploy. Deploy each environment
Behind a path prefix, the client finds no authorization server The proxy is missing the root route /.well-known/oauth-authorization-server/<prefix> (Configuration). The bridge takes the prefixed console address, --oauth https://<host>/<prefix>
404 on the metadata request The client did not send the ramen-group and ramen-zone headers, so the load balancer had no zone to route to
The consent page says you have no access Your account has no role in that group
401 after a while The refresh token ended because your role or password changed. Sign in again
-32026 evals config required or … changed: sign in again (HTTP 428) The group requires the current evals config and your client does not hold it, or the repo's mcp/evals/promptfooconfig.yaml changed. The bridge signs in again by itself; another client reconnects (Evals)
-32027 skillspector policy required or … changed: sign in again (HTTP 428) The group requires the SkillSpector policy and your client does not hold its current version. The bridge signs in again by itself (SkillSpector scans)
-32029 guardrails policy required or … changed: sign in again (HTTP 428) The group requires its guardrails policy and your client does not hold the current version (the rails, required, or the group's LLM provider or model changed). The bridge signs in again by itself (Guardrails)
